【Product Promotion】50ns Delay Micro-Power Differential Comparators — AiP3201/2/4/5/6/8

The AiP320X series comparator circuits achieve an optimal combination of high speed and low power consumption, delivering a propagation delay of 50 ns with a static current of only 48 µA per channel. Among them, the AiP3201, AiP3202, and AiP3204 are single, dual, and quad-channel comparators with push-pull outputs respectively, while the AiP3205, AiP3206, and AiP3208 are single, dual, and quad-channel comparators with open-drain outputs respectively. These devices feature fast response, low power consumption, rail-to-rail input, low offset voltage, and high output drive current. They are suitable for applications such as equipment detection, test and measurement systems, and high-speed sampling systems. Additionally, I-CORE offers the AiP3201B model in an ultra-compact SOT553 package, specifically designed for cost-sensitive and space-constrained applications.

Main feature

Propagation delay: 50ns (Typical)

Input common-mode voltage range: -0.2V to VCC+0.2V

Input offset voltage: 1mV

Push-pull output（AiP3201/2/4）

Open-drain output（AiP3205/6/8）

Supply voltage range: +2.7V to 5.5V

Ambient temperature range: -40°C to 125°C

Packaging form:

AiP3201：SOT23-5/SOT353

AiP3201B：SOT553

AiP3202：SOP8/MSOP8

AiP3204：SOP14/TSSOP14

AiP3205：SOT23-5/ SOT353

AiP3206：SOP8/MSOP8

AiP3208：SOP14/TSSOP14

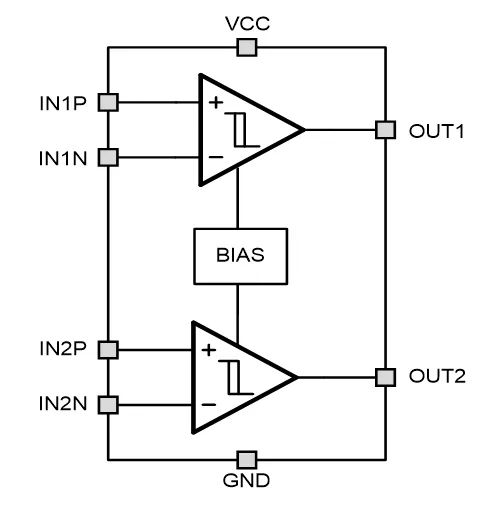

Functional block diagram

Pin arrangement diagram

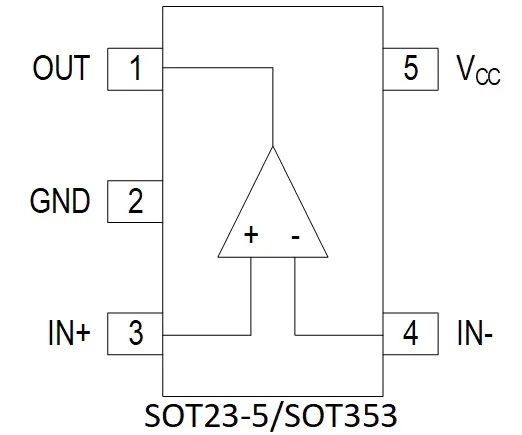

AiP3201

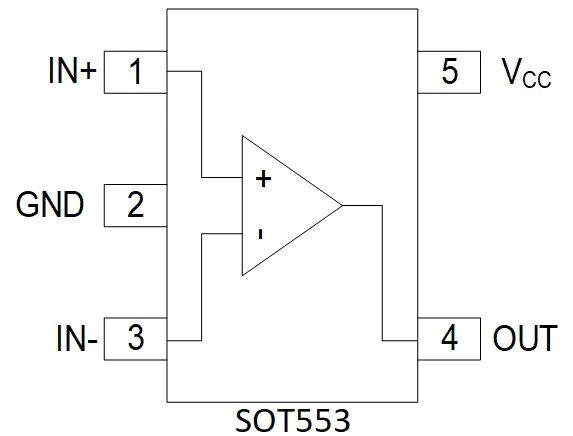

AiP3201B

AiP3202

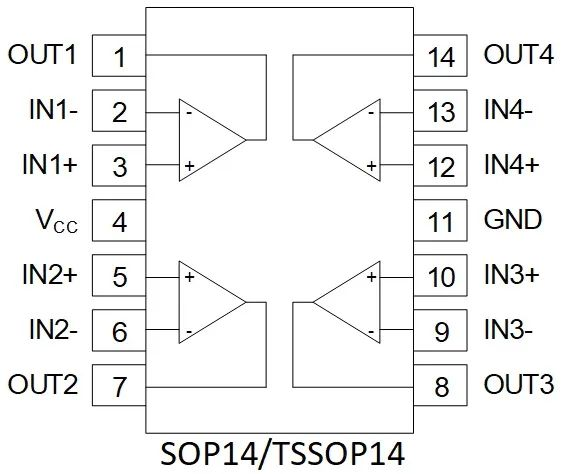

AiP3204

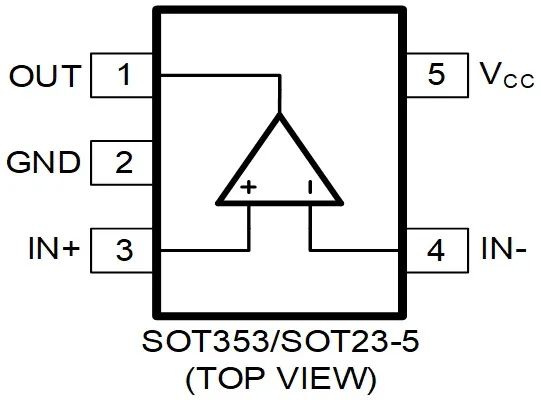

AiP3205

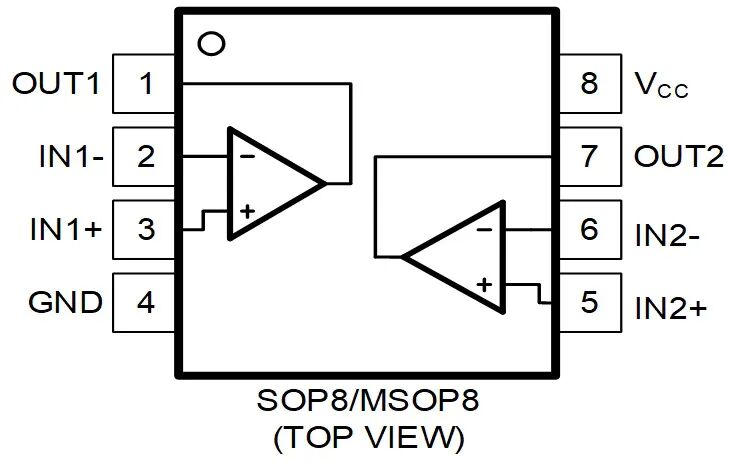

AiP3206

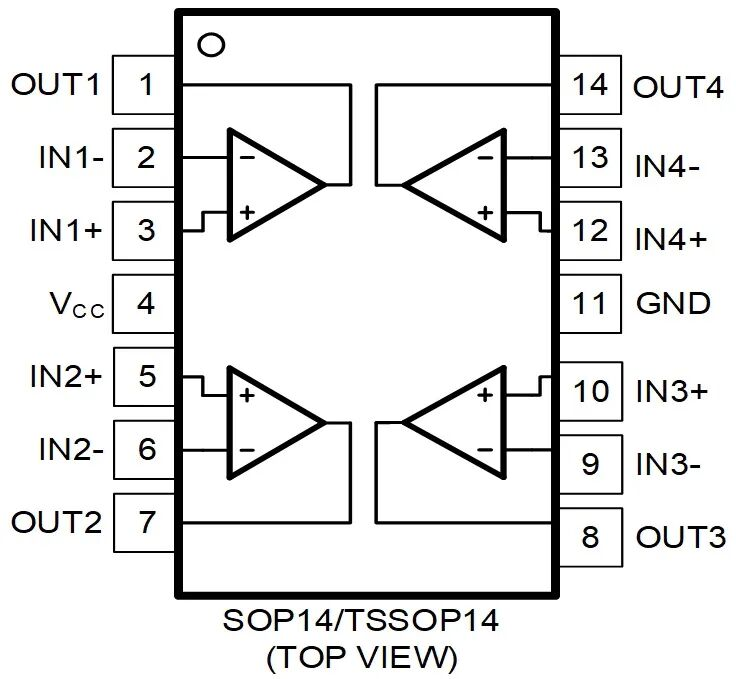

AiP3208

Application field

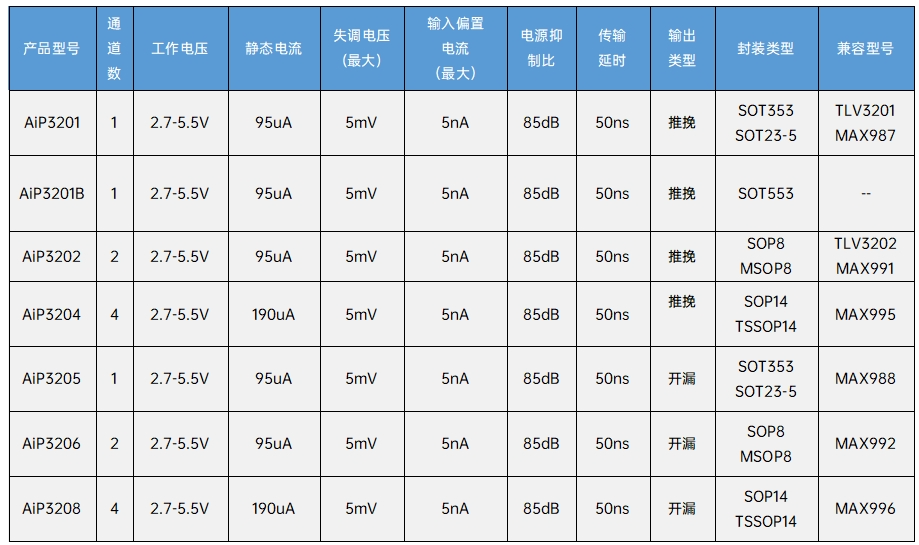

Detailed specifications for the AiP320X series models are provided in the table below：

Conclusion

Furthermore, I-CORE provides other series of high-speed, low-power comparators, including the AiP322X, AiP324X, and AiP321X families available for selection. For additional technical support, please feel free to contact us.
